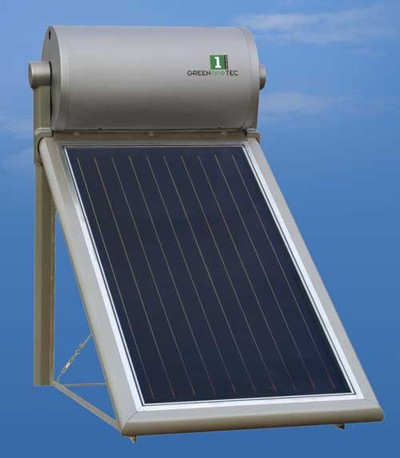

TS 150-Thermal siphon
1. TECHNICAL DESCRIPTION
Highest yield is being guaranteed by the perfect combination of high-efficiency solar collectors (using GREENHEAT technology with vacuum coated, ultrasonically welded full face absorbers) and newly developed double jacket tanks (Pat. pend.). The closed loop system avoids scaling problems and supports the operation even under freezing conditions.The aesthetic design of the product perfectly covers all water pipes and the expansion tank. Additionally, all cold and warm water connections are being integrated harmonically within the stand.
2. TECHNICAL DESCRIPTION OF THE COMPONENTS
2.1 Housing
Frame from saltwater-proof aluminium profiles
| Rear panel: | Stucco aluminium 0,6 mm |
2.2 Absorber
Highly selectively coated sheet copper.
| Absorption: | 95% +/- 2% |
| Emission: | 5% +/- 3 % |
2.3 Transparent Cover
4 mm low-iron solar glass, tempered.
2.4 Insulation
50 mm mineral wool
2.5 Tank
| Material: | Ceramic tank in a steelcase 2,5 mm |
| Coating: | Double enamel |
| Fittings: | 3/4" |
| Insulation: | 50 mm PU insulation |
| Exterior cover: | Aluminium sheet |
3. TECHNICAL data -TS 150
| Overall area [mē] | 2 |
| Tank capacity [l] | 150 |
| Stand | Aluminium profiles |
| Covers | Aluminium sheets |
| Safety valve | YES |
| Protection anode | YES |
| Electric booster | Optional |
| Max. operating pressure | 6 bar |
| Weight (empty) | |
| Absorber capacity (l) |
1,4 l |
| Mounting angle | 35o |
| Dimensions: | |
| Max. width | 1.230 mm |
| Max. length | 2.180 mm |
| Max. height | 2.000 mm |
|
Coating versions
|
High selective vacuumcoated |
| Absorption: | 95,0% +/-2% |
| Emission: | 5,0% +/-3,0% |
