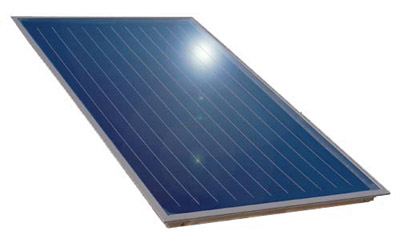

1. TECHNICAL DESCRIPTION
The collectors of this series are drysealed without silicone. The solar glass
cover is sealed by means of an uncemented rubber frame.
The full-face absorber
is bedded in an aluminium trough on a layer of rockwool with a thickness of
50 mm. A special modular mounting system was developed for the series which
makes it possible to realise standalone, roof-integrated and roofmounted solutions
with equal ease.
2. TECHNICAL DESCRIPTION OF THE COMPONENTS
2.1 Housing
Material:
Aluminium - AIMg3
Color:
aluminium
Thickness:
0,8 mm
2.2 Absorber
Full-face absorber; headers and manifolds are hard soldered and ultrasonically welded to the absorber sheet.
Header tubes: | ø18x1,0 mm; 22x0,8 mm |
Manifolds: | ø 8x0,5 mm |
Copper sheet: | High selective vacuum coated 0,2 mm |
Connections | Flat-sealing DM 22-1"; DM 18 3/4 " screw couplings |
2.3 Transparent cover
4 mm low-iron solar glass, tempered
Light transmittance of glass: | > 90,8% +/- 2% | ||
Pane dimensions LxW [mm]: |
2318 x 1044 FK 7300) |
2040 x 1200 (FK7250) |
2000 x 1000 (FK7200) |
Sealing of glass: | Continuously vulcanized (UV-proofed EPDM-rubber frame – shore 70) |
2.4 Insulation
40/50 mm mineral wool.
Heat conductivity:
0,045 W/mK
Gross density:
50 - 80 kg/m³
2.5 Other
Fixing of outlets: Fixings of manifolds are made from fibre reinforced plastic and form a thermic separation to the trough.
Type plate: UV-proof and weatherresistant silverpolyester-sticker.
Packing: According to our customer's demands we wrap single collectors or deliver on palettes.
3. TECHNICAL DATA
FK7300 | FK7250 | FK7200 | |
Overall area [m²] | 2,55 | 2,58 | 2,12 |
Absorber area [m²] | 2,21 | 2,20 | 1,81 |
Aperture area [m²] | 2,29 | 2,30 | 2,00 |
Dimensions [mm]: | |||
Length | 2356 | 2077 | 2039 |
Width | 1081 | 1238 | 1039 |
Height | 100 | 100 | 91 |
Overall collector weight [kg]: | 48 | 49 | 39 |
Absorber capacity [l]: | 1,5 | 1,6 | 1,4 |
Absorber coating: |
high selective vacuum coating | ||
Absorption | 95,0 % +/- 2% | ||
Emission | 5,0 % +/- 2,0 % | ||
Stagnation temperature: | 180o C plus temperature ambient | ||
Max. operating pressure: | 10 bar | ||
Design approval No.: | TÜV 02 - 328 - 083 | ||
Heat transfer medium: | Polypropylene glycol / water mixture |
